Lecture 7

Distributed File Systems and HDFS

Distributed File Systems and HDFS

Why do we need distributed storage?

The scale problem

Modern applications generate data at rates that far exceed what any single machine can store or process:

• Social media: billions of posts, images, videos
• IoT sensors: trillions of readings per day
• Web crawls: petabytes of HTML, images, links
• Scientific simulations: terabytes per run

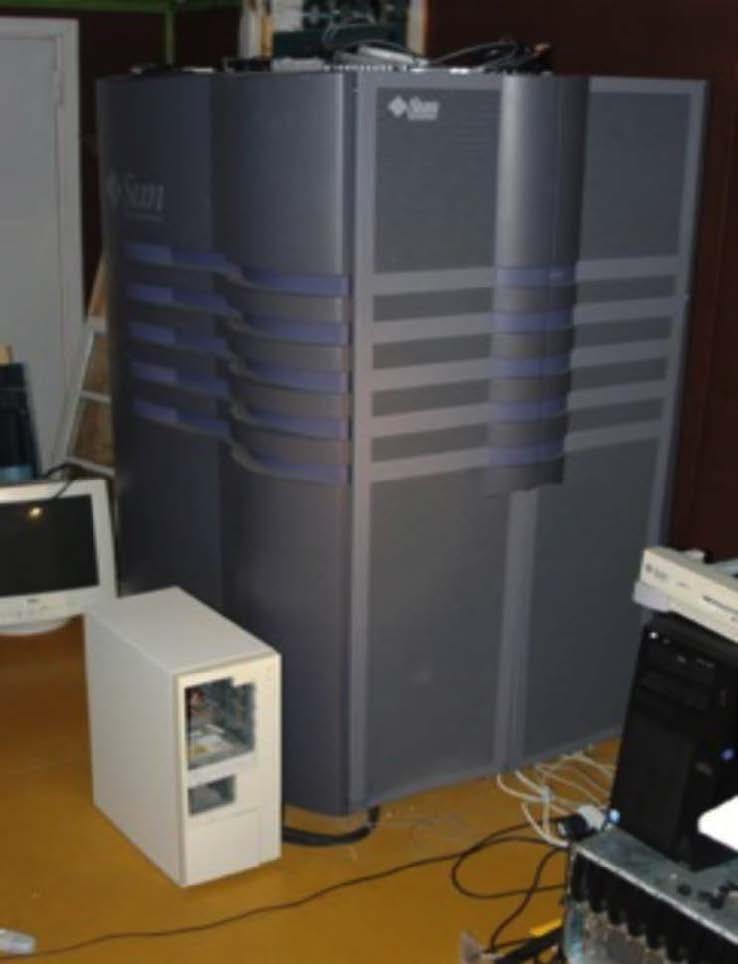

Yesterday’s solution: scale up

The 1990s approach

One big box — all processors share memory

• Very expensive, low-volume hardware
• All-premium components
• Storage and compute tightly coupled

But even the biggest single machine wasn’t big enough!

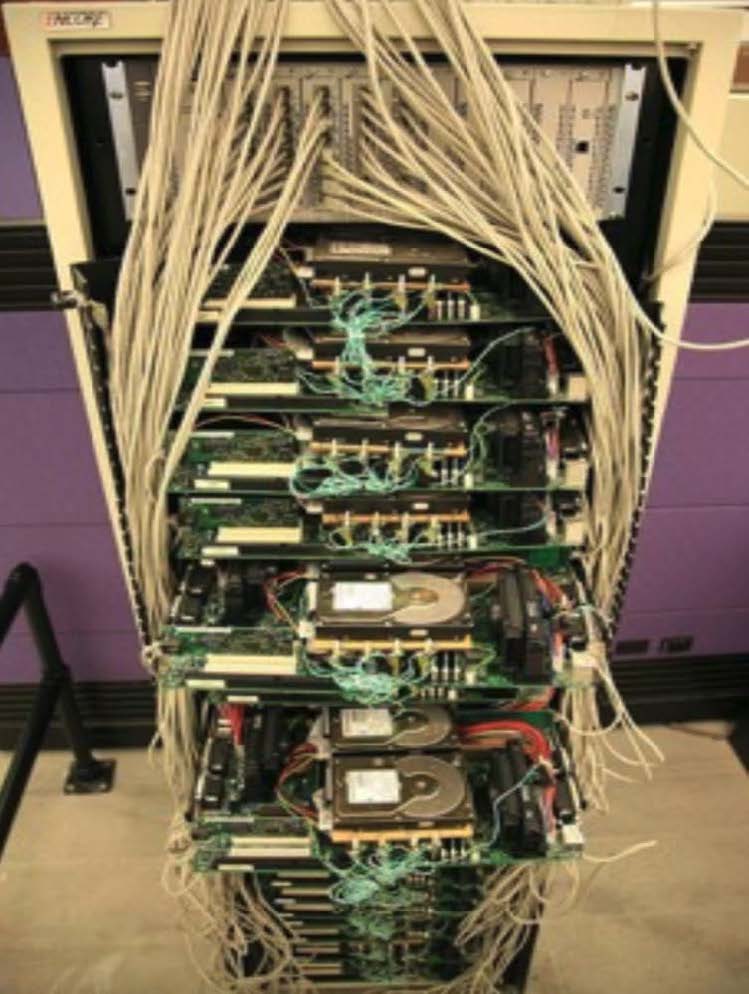

Today’s solution: scale out with commodity hardware

Consumer-grade servers

Not expensive, premium, or fancy in any way

Buy lots of cheap, desktop-like servers!

• Easy to add capacity
• Cheaper per CPU/disk
• Failure is the norm, not the exception

The catch

Need more complex software to coordinate many cheaper machines.

Problems with commodity hardware

Failure rates

• 1–5% of hard drives fail per year
• ~0.2% of DIMMs fail per year
• On a 1,000-node cluster, expect failures every week

Network vs. shared memory

• Much more latency than RAM
• Network throughput << local disk throughput

Uneven performance

• “Stragglers” slow the entire job

Big data processing systems are built on average machines that fail pretty often.

The software must treat failure as a routine event, not an exception.

What is a distributed file system?

A distributed file system (DFS) stores data across many machines while presenting a single, unified namespace to clients.

Key properties

• Single namespace: /user/data/logs/ looks the same from every node
• Fault tolerance: data survives individual node failures
• Scalability: add capacity by adding machines
• Data locality: move computation to the data, not data to computation

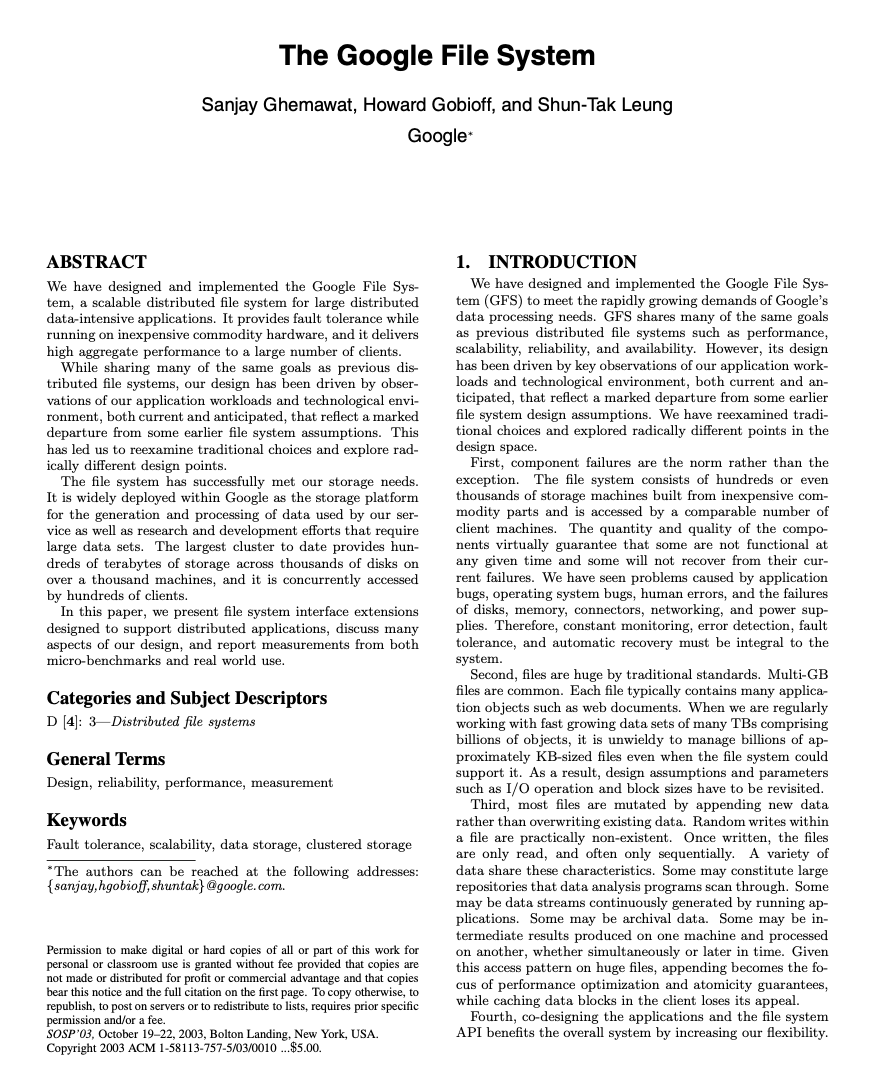

The Google File System (2003): the blueprint

Why GFS matters

Google’s 2003 paper described a production file system built from commodity hardware, designed around the assumption that:

• Component failures are the norm
• Files are huge (multi-GB) and write-once/read-many
• Sequential reads dominate random reads
• Relaxed consistency is acceptable for batch workloads

GFS proved that a reliable, large-scale distributed file system could be built cheaply.

Ghemawat, S., Gobioff, H., & Leung, S. T. (2003). The Google file system. SOSP ’03.

HDFS: the open-source GFS

Origin story

• 2004: Doug Cutting and Mike Cafarella implement GFS ideas in Java as part of Nutch → Nutch Distributed File System (NDFS)
• 2006: NDFS becomes HDFS when Hadoop is spun out of Nutch/Lucene
• Yahoo! adopts Hadoop; Doug Cutting joins Yahoo!
• 2008: World record — 1 TB sorted in 209 seconds on a 910-node cluster

Why Hadoop won

Google File System is a proprietary product. Nobody outside Google could use it.

Hadoop is open source (Apache License). Anyone can use, modify, and deploy it.

“Who has heard of Colossus?” (Google’s successor to GFS — almost nobody outside Google)

Open source → ecosystem → community → adoption.

HDFS architecture: NameNode and DataNodes

NameNode (master)

• Manages the file system namespace: directory tree, file-to-block mappings, permissions
• Stores metadata in memory (fsimage + edit log)
• Does not store actual file data

DataNodes (workers)

• Store and serve actual data blocks
• Report block inventory to NameNode via heartbeats
• Replicate blocks between each other on instruction

White, T. (2015). Hadoop: The Definitive Guide, 4th ed. O’Reilly.

HDFS design principles

Block-based storage

• Files are split into fixed-size blocks (default: 128 MB in HDFS 3.x)
• Each block is stored independently on a DataNode
• Allows large files to span many disks and machines

Replication

• Each block is replicated 3× by default (configurable)
• Replicas are placed across different nodes and racks
• If a DataNode fails, the NameNode re-replicates its blocks elsewhere

Rack-aware placement

White, T. (2015). Hadoop: The Definitive Guide, 4th ed. O’Reilly.

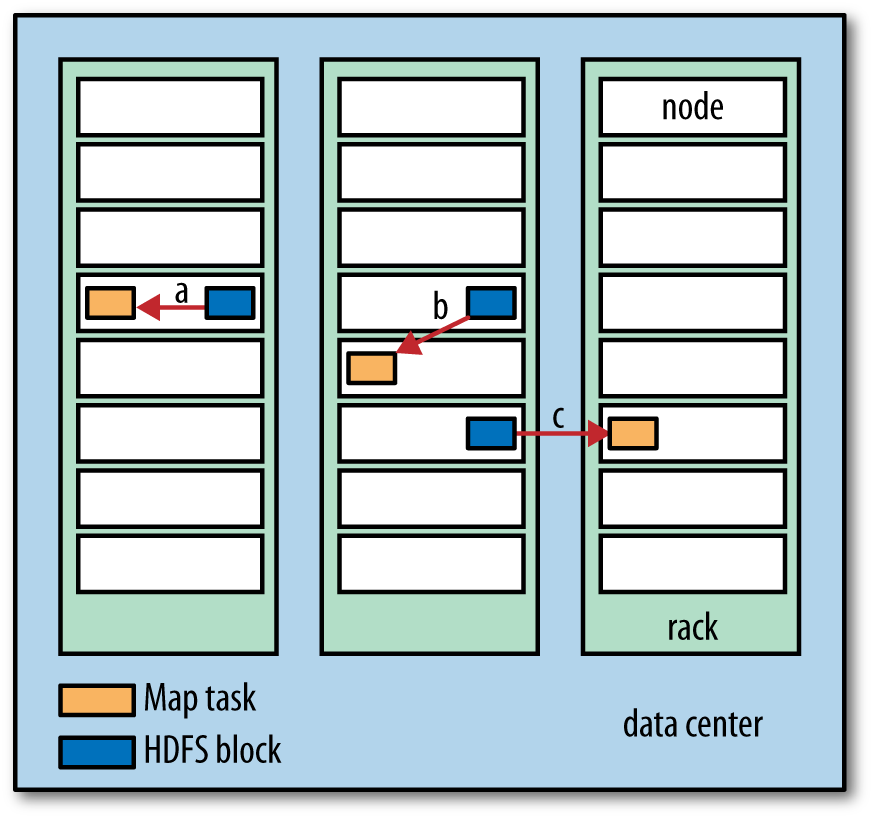

Data locality: move computation to the data

The key insight

Network is the bottleneck, not CPU.

Old model: copy data to where the code runs. HDFS/MapReduce model: run code where the data already lives.

When possible, the scheduler assigns work to a node that already holds the relevant block. This eliminates most network traffic for data-intensive workloads.

Consequence: HDFS is tightly coupled to Hadoop/YARN

• YARN resource manager knows which DataNode holds which blocks
• Assigns Map tasks to nodes with local copies first
• Falls back to same-rack nodes, then cross-rack

HDFS is designed for specific workloads

Pattern	HDFS handles well	HDFS handles poorly
File size	Large files (GB–TB)	Millions of small files
Access pattern	Sequential reads	Random reads/writes
Write pattern	Write-once, append-only	Frequent overwrites
Latency	High throughput	Low-latency access
Clients	Batch jobs	Interactive queries

Note

HDFS is optimized for the analytics batch processing use case — reading entire datasets sequentially — not for serving web requests or online transactions.

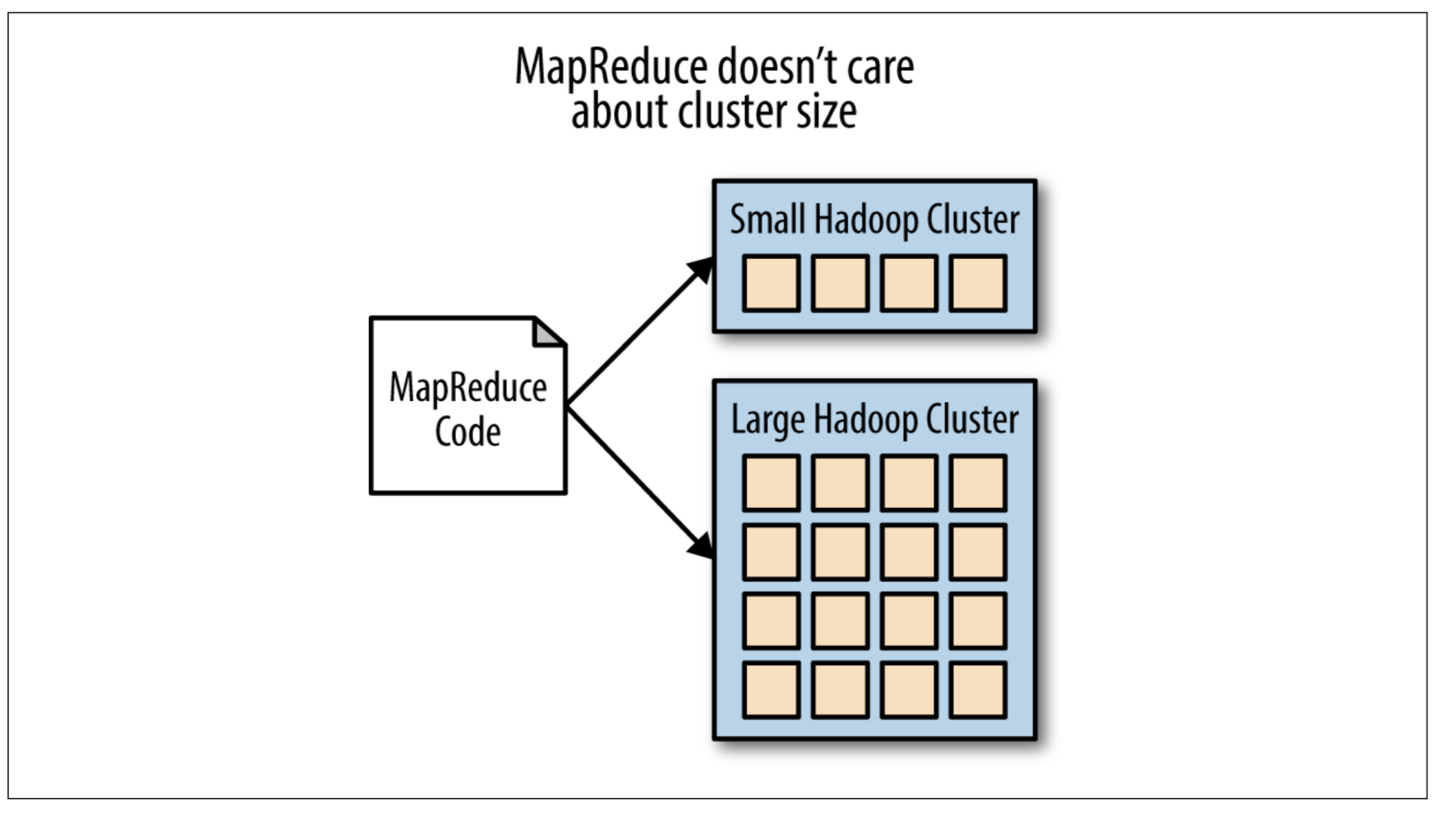

HDFS scalability

Scaling is linear

• Add a DataNode → cluster gains storage and bandwidth
• NameNode can manage hundreds of millions of blocks
• Real-world clusters:
  • Yahoo! (2010): 4,000 nodes, ~70 PB
  • Facebook (2010): 2,300 nodes, ~40 PB
  • Twitter (2017): 500+ PB across clusters

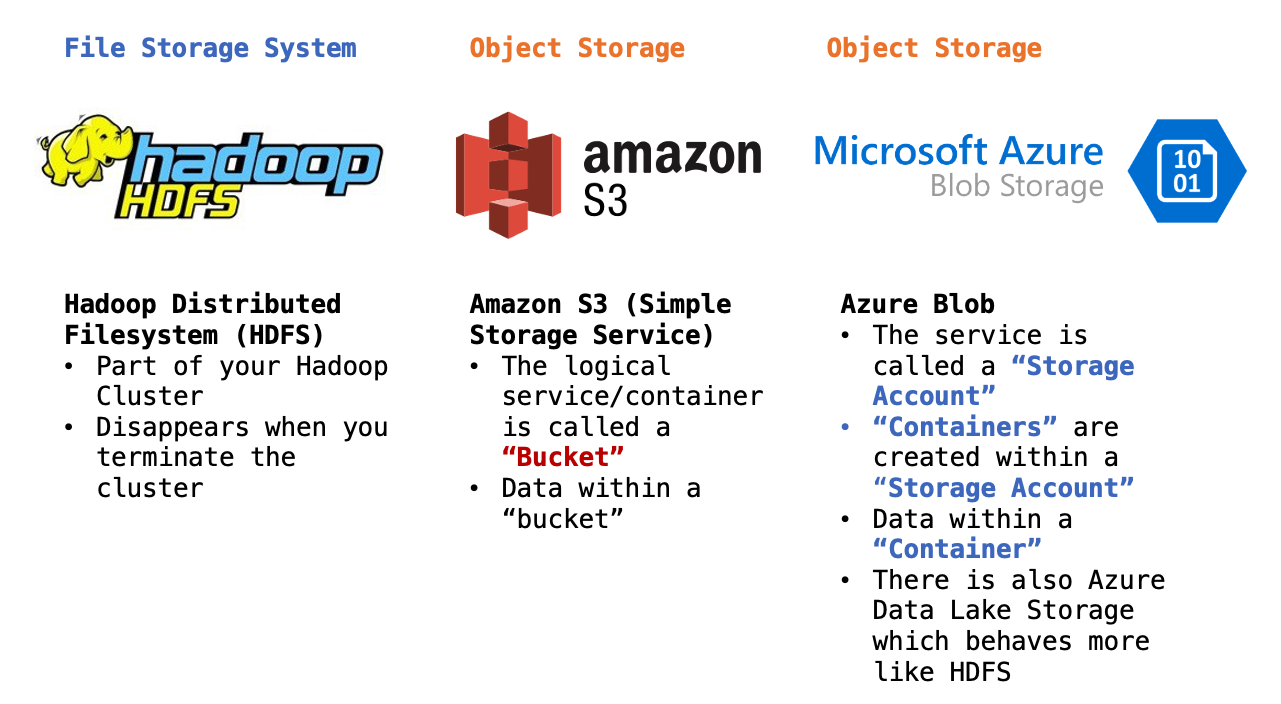

HDFS vs. Cloud Object Storage

As cloud computing matured, object stores (S3, Azure Blob, GCS) became a popular alternative to HDFS for large-scale storage.

	HDFS	Cloud Object Store
Scalability	Bound by NameNode	Virtually unlimited
Coupling	Storage + compute together	Storage separate from compute
Cost	CapEx (servers)	OpEx (pay per GB)
Fault tolerance	3× replication	Built in (provider-managed)
Interface	POSIX-like CLI / Java API	REST API (s3://, abfs://)
Data locality	Yes	No (network always)

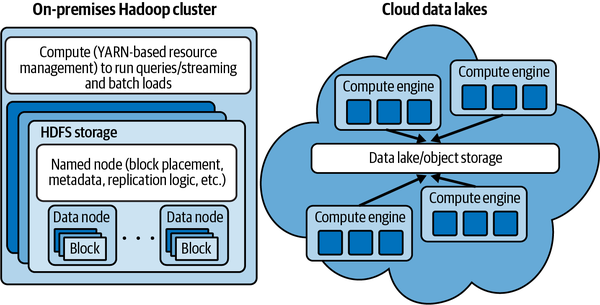

De-coupling storage from compute

The modern cloud data lake pattern

Storage and compute are separate, independently scalable systems.

• Before: HDFS nodes store data and run MapReduce tasks
• After: Data lives in S3/GCS/ADLS; compute clusters (Spark, EMR, Databricks) spin up, read from object store, and spin down

Benefits: - Pay only for compute while jobs run - Store data indefinitely at low cost - Mix and match compute engines

Gopalan, R. (2022). The Cloud Data Lake. O’Reilly.

HDFS command-line interface

HDFS exposes a shell interface that mirrors Unix filesystem commands:

# List files
hdfs dfs -ls /user/hadoop/data/

# Copy local file to HDFS
hdfs dfs -put localfile.csv /user/hadoop/data/

# Copy from HDFS to local
hdfs dfs -get /user/hadoop/data/output/ ./output/

# Print contents of a file
hdfs dfs -cat /user/hadoop/data/results/part-00000

# Create a directory
hdfs dfs -mkdir /user/hadoop/staging

# Remove a file or directory
hdfs dfs -rm -r /user/hadoop/staging

Full reference: HDFS Shell Commands

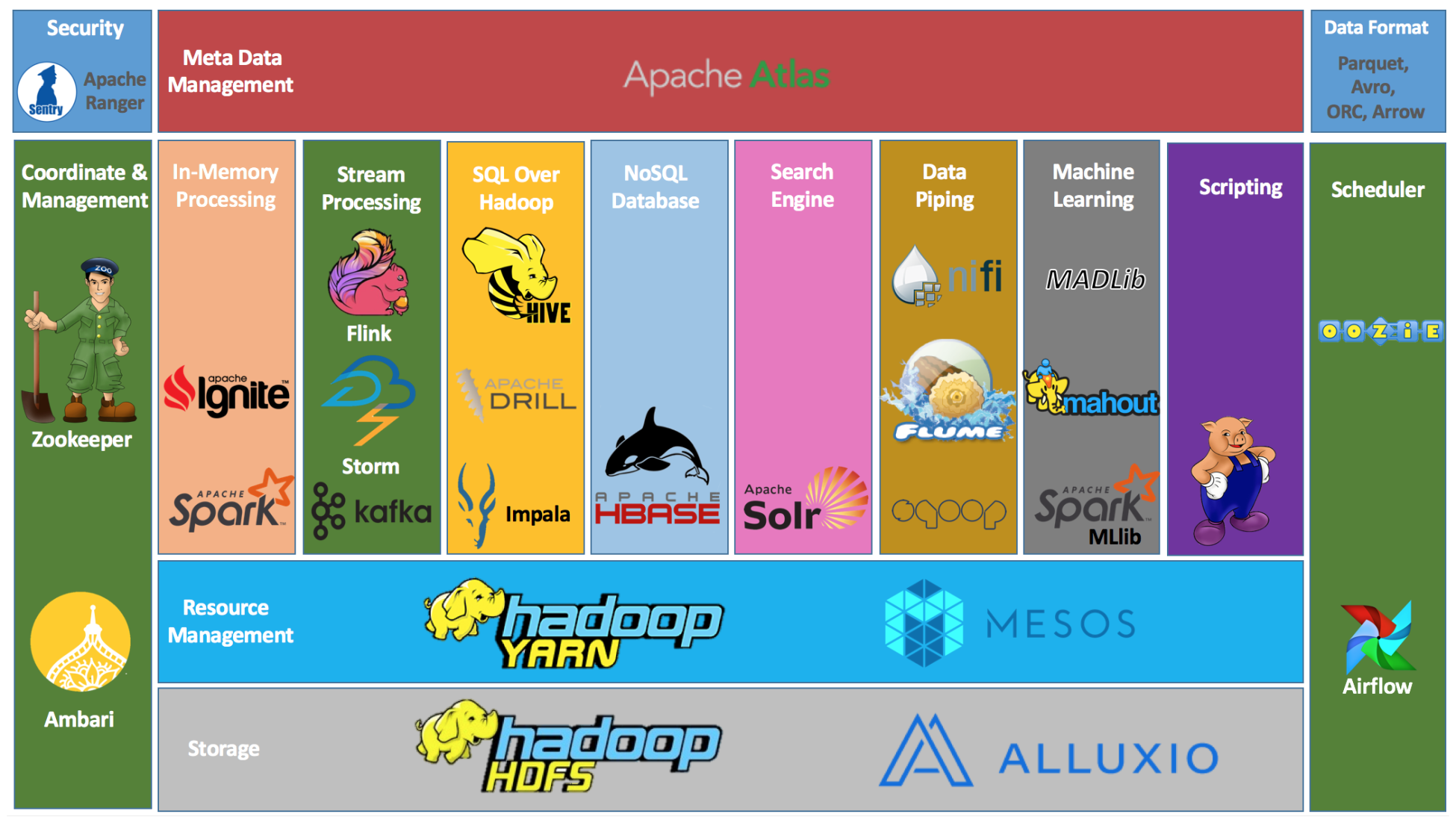

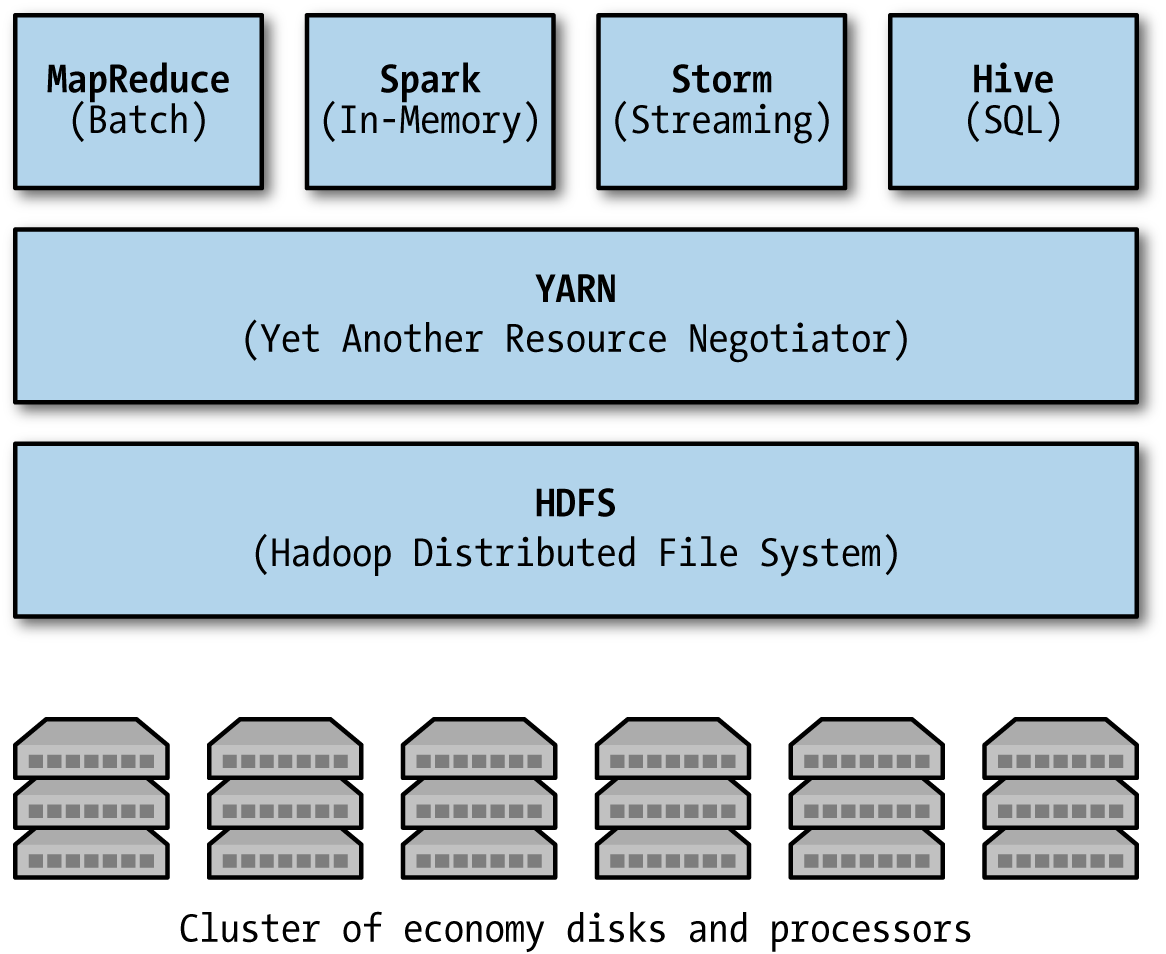

The Hadoop ecosystem

HDFS is the storage foundation; dozens of tools have been built on top of it. Live reference: https://hadoopecosystemtable.github.io/

Summary: why distributed file systems matter

The core ideas

1. Commodity hardware fails — design for resilience, not around it
2. Block-based replication provides fault tolerance without expensive RAID
3. Data locality eliminates network as the bottleneck
4. Single namespace hides distributed complexity from applications
5. Write-once / append simplifies consistency

HDFS’s legacy

HDFS proved these ideas work at internet scale. Even as cloud object stores have largely supplanted HDFS for new deployments, every modern data lake — S3, Azure Data Lake, GCS — inherits the same core principles:

• Replication and fault tolerance
• Massive scalability through horizontal partitioning
• Decoupling of storage and compute
