Lecture 9

Spark Diagnostics and UDFs

Looking Back

  • Introduction to Apache Spark
  • Spark RDDs — transformations and actions
  • Spark DataFrames
  • SparkSQL

Today

  • Spark as a unified engine (review)
  • Spark Diagnostic UI
  • PySpark User Defined Functions (UDFs)
  • UDF performance and Pandas UDFs

Spark: a Unified Engine

Connected and extensible

Caching and Persistence

By default, RDDs are recomputed every time you run an action on them. This can be expensive if you need to use a dataset more than once.

Spark allows you to control what is cached in memory.

To tell Spark to cache an object in memory, use persist() or cache():

  • cache() — shortcut for default storage level (memory only)
  • persist() — customizable to memory and/or disk
# caches error RDD in memory (lazy — only computed after first action)
errors = logs.filter(lambda x: "error" in x and "2019-12" in x).cache()

collect CAUTION

PySparkSQL Cheatsheet

A handy reference for common PySpark operations:

PySpark SQL Cheat Sheet (DataCamp)

Spark Diagnostic UI

Understanding how the cluster is running your job

Spark Application UI shows important facts about your Spark job:

  • Event timeline for each stage of your work
  • Directed acyclic graph (DAG) of your job
  • Spark job history
  • Status of Spark executors
  • Physical / logical plans for any SQL queries

Tool to confirm you are getting the horizontal scaling that you need!

Adapted from AWS Glue Spark UI docs and Spark UI docs

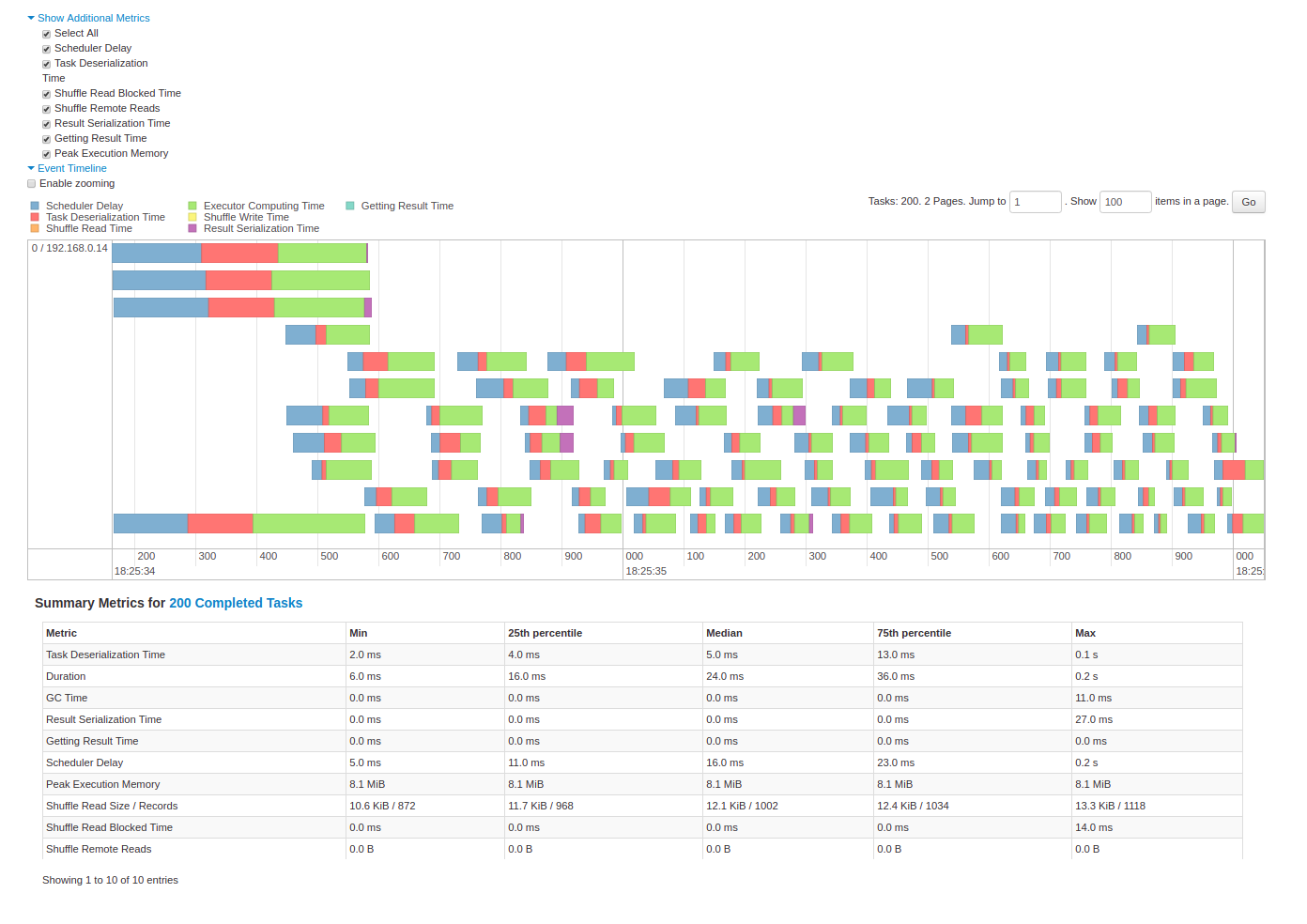

Spark UI — Event Timeline

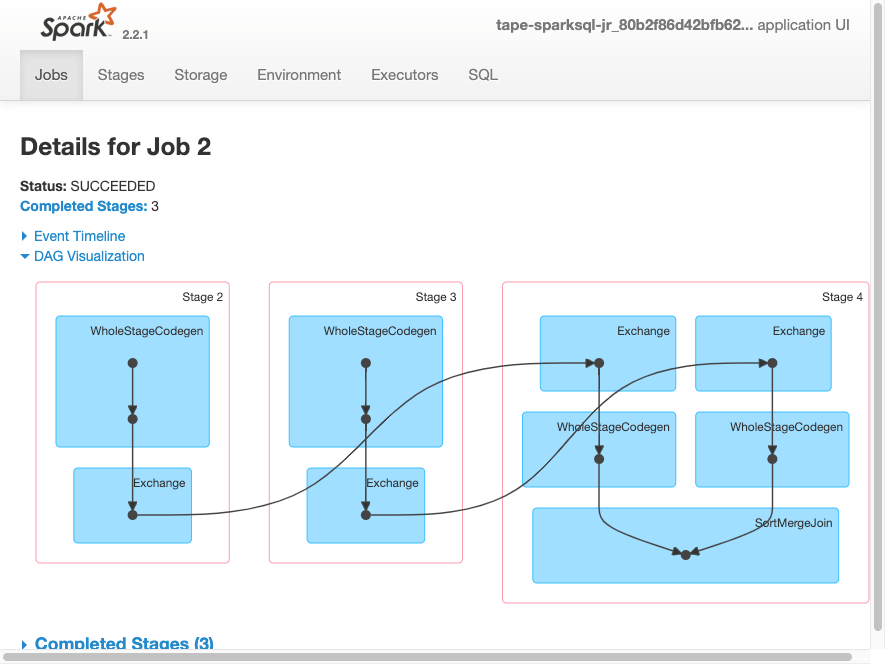

Spark UI — DAG

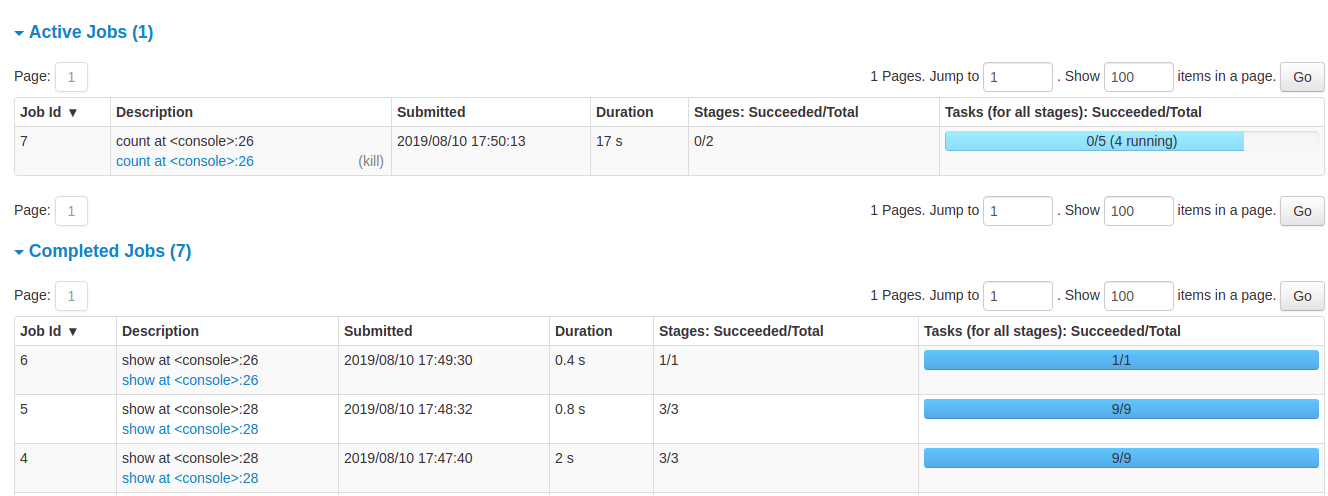

Spark UI — Job History

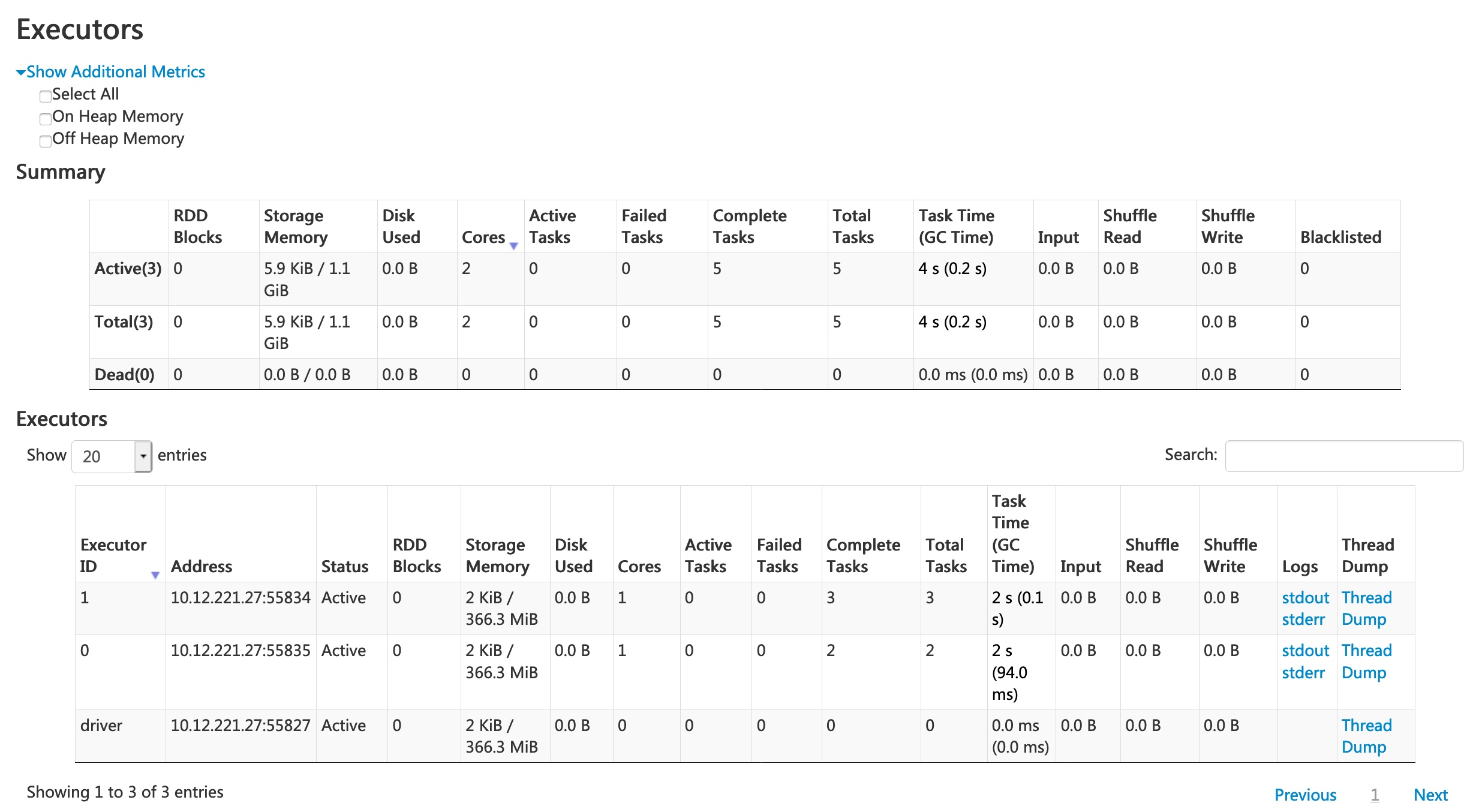

Spark UI — Executors

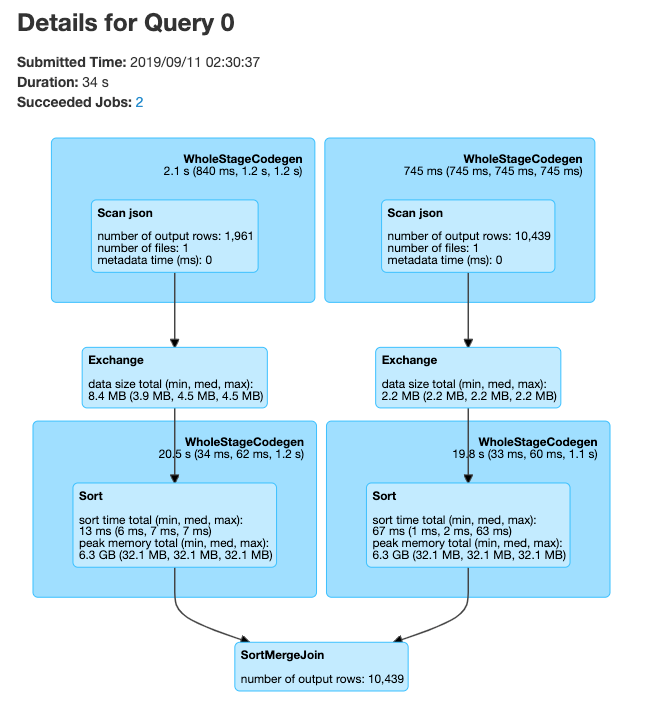

Spark UI — SQL

PySpark User Defined Functions

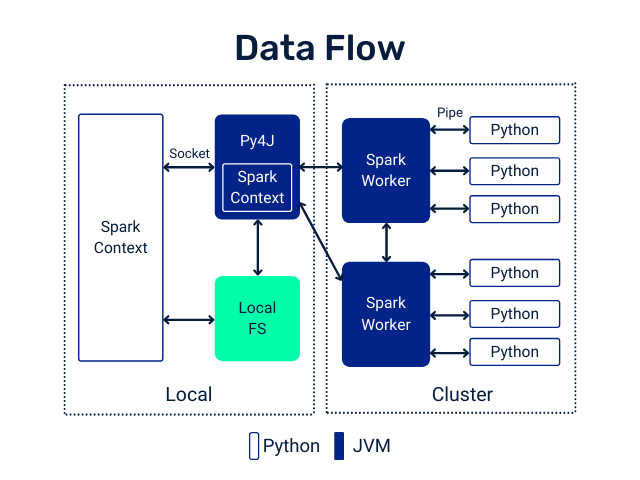

UDF Workflow

UDF Code Structure

Clear input

A single row of data with one or more columns used

Function

Some work written in Python that processes the input using Python syntax. No PySpark needed!

Clear output

Output with a declared return type

UDF Example

Problem: make a new column with ages for adults only

+-------+--------------+
|room_id|   guests_ages|
+-------+--------------+
|      1|  [18, 19, 17]|
|      2|   [25, 27, 5]|
|      3|[34, 38, 8, 7]|
+-------+--------------+

Adapted from UDFs in Spark

UDF Code Solution

from pyspark.sql.functions import udf, col

@udf("array<integer>")
def filter_adults(elements):
    return list(filter(lambda x: x >= 18, elements))

# alternatively, with explicit type annotation
from pyspark.sql.types import IntegerType, ArrayType

@udf(returnType=ArrayType(IntegerType()))
def filter_adults(elements):
    return list(filter(lambda x: x >= 18, elements))
+-------+----------------+------------+
|room_id| guests_ages    | adults_ages|
+-------+----------------+------------+
| 1     | [18, 19, 17]   |    [18, 19]|
| 2     | [25, 27, 5]    |    [25, 27]|
| 3     | [34, 38, 8, 7] |    [34, 38]|
| 4     |[56, 49, 18, 17]|[56, 49, 18]|
+-------+----------------+------------+

Alternative to Spark UDF

When possible, prefer built-in Spark functions — they’re optimized and run on the JVM without serialization overhead.

# Spark 3.1+
from pyspark.sql.functions import col, filter, lit

df.withColumn('adults_ages',
              filter(col('guests_ages'), lambda x: x >= lit(18))).show()

Another UDF Example

Separate function definition form — lets you test the function locally first:

from pyspark.sql.functions import udf
from pyspark.sql.types import LongType

# define the function — can be tested without Spark
def squared(s):
    return s * s

# wrap in udf and define the output type
squared_udf = udf(squared, LongType())

# execute the udf
df = spark.table("test")
df.select("id", squared_udf("id").alias("id_squared")).show()

Another UDF Example

Single function definition form using decorator:

from pyspark.sql.functions import udf

@udf("long")
def squared_udf(s):
    return s * s

df = spark.table("test")
df.select("id", squared_udf("id").alias("id_squared")).show()

Can also refer to a UDF in SQL

Register the function with Spark SQL:

spark.udf.register("squaredWithPython", squared)

# then use it in SQL
spark.sql("SELECT id, squaredWithPython(id) AS id_squared FROM test")

Tip

Consider all the corner cases — where could the data be null or an unexpected value? Use Python control structures to handle them.

source

UDF Performance

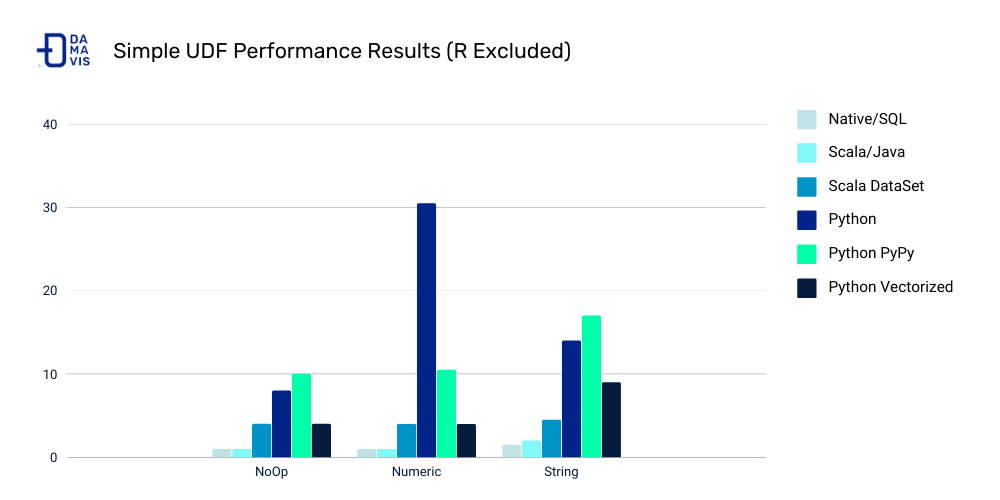

UDF Speed Comparison

Costs of Python UDFs:

  • Serialization/deserialization (like pickle files)
  • Data movement between JVM and Python
  • Less Spark optimization possible

Other ways to make Spark jobs faster (source):

  • Cache/persist data into memory
  • Use Spark DataFrames over RDDs
  • Use Spark SQL functions before jumping to UDFs
  • Save in serialized formats like Parquet

Pandas UDFs

What are Pandas UDFs?

From PySpark docs:

Pandas UDFs are user-defined functions that are executed by Spark using Apache Arrow to transfer data and Pandas to work with the data, which allows vectorized operations. A Pandas UDF is defined using pandas_udf as a decorator or to wrap the function.

import pandas as pd
from pyspark.sql.functions import pandas_udf

@pandas_udf("string")
def to_upper(s: pd.Series) -> pd.Series:
    return s.str.upper()

df = spark.createDataFrame([("John Doe",)], ("name",))
df.select(to_upper("name")).show()
# +--------------+
# |to_upper(name)|
# +--------------+
# |      JOHN DOE|
# +--------------+

Another Pandas UDF example

@pandas_udf("first string, last string")
def split_expand(s: pd.Series) -> pd.DataFrame:
    return s.str.split(expand=True)

df = spark.createDataFrame([("John Doe",)], ("name",))
df.select(split_expand("name")).show()
# +------------------+
# |split_expand(name)|
# +------------------+
# |       [John, Doe]|
# +------------------+

PySpark pandas_udf docs

Scalar Pandas UDFs

Vectorizing scalar operations — same-size input and output Series:

Regular UDF form:

from pyspark.sql.functions import udf

@udf('double')
def plus_one(v):
    return v + 1

df.withColumn('v2', plus_one(df.v))

Pandas UDF form — faster vectorized form (Spark 3.0+ syntax):

from pyspark.sql.functions import pandas_udf

@pandas_udf("double")
def pandas_plus_one(v: pd.Series) -> pd.Series:
    return v + 1

df.withColumn('v2', pandas_plus_one(df.v))

Note

PandasUDFType.SCALAR was deprecated in Spark 3.0. Use Python type annotations (pd.Series → pd.Series) instead.

source

Grouped Map Pandas UDFs

Split-apply-combine using Pandas syntax (Spark 3.0+ syntax):

from pyspark.sql.functions import pandas_udf

@pandas_udf(df.schema)
def subtract_mean(pdf: pd.DataFrame) -> pd.DataFrame:
    return pdf.assign(v=pdf.v - pdf.v.mean())

df.groupby('id').applyInPandas(subtract_mean, schema=df.schema)

Note

PandasUDFType.GROUPED_MAP was deprecated in Spark 3.0. Use applyInPandas() with type annotations instead.

Comparing Scalar and Grouped Map Pandas UDFs

Input:

  • Scalar: pandas.Series
  • Grouped map: pandas.DataFrame

Output:

  • Scalar: pandas.Series
  • Grouped map: pandas.DataFrame

Grouping semantics:

  • Scalar: no grouping semantics
  • Grouped map: defined by groupby clause

Output size:

  • Scalar: same as input size
  • Grouped map: any size

Note

Use Scalar Pandas UDFs for row-wise vectorized operations.

Use Grouped Map when you need split-apply-combine with arbitrary output sizes.
