Lecture 10

Spark ML and Spark NLP

Looking Back

  • Spark RDDs, DataFrames, SparkSQL
  • Spark Diagnostic UI
  • PySpark UDFs and Pandas UDFs
  • Performance optimization

Today

  • Spark MLlib: ML at scale
  • Transformers, Estimators, Pipelines
  • Feature engineering with Spark
  • ML models in Spark
  • Text analytics and Spark NLP

ML at Scale with Spark

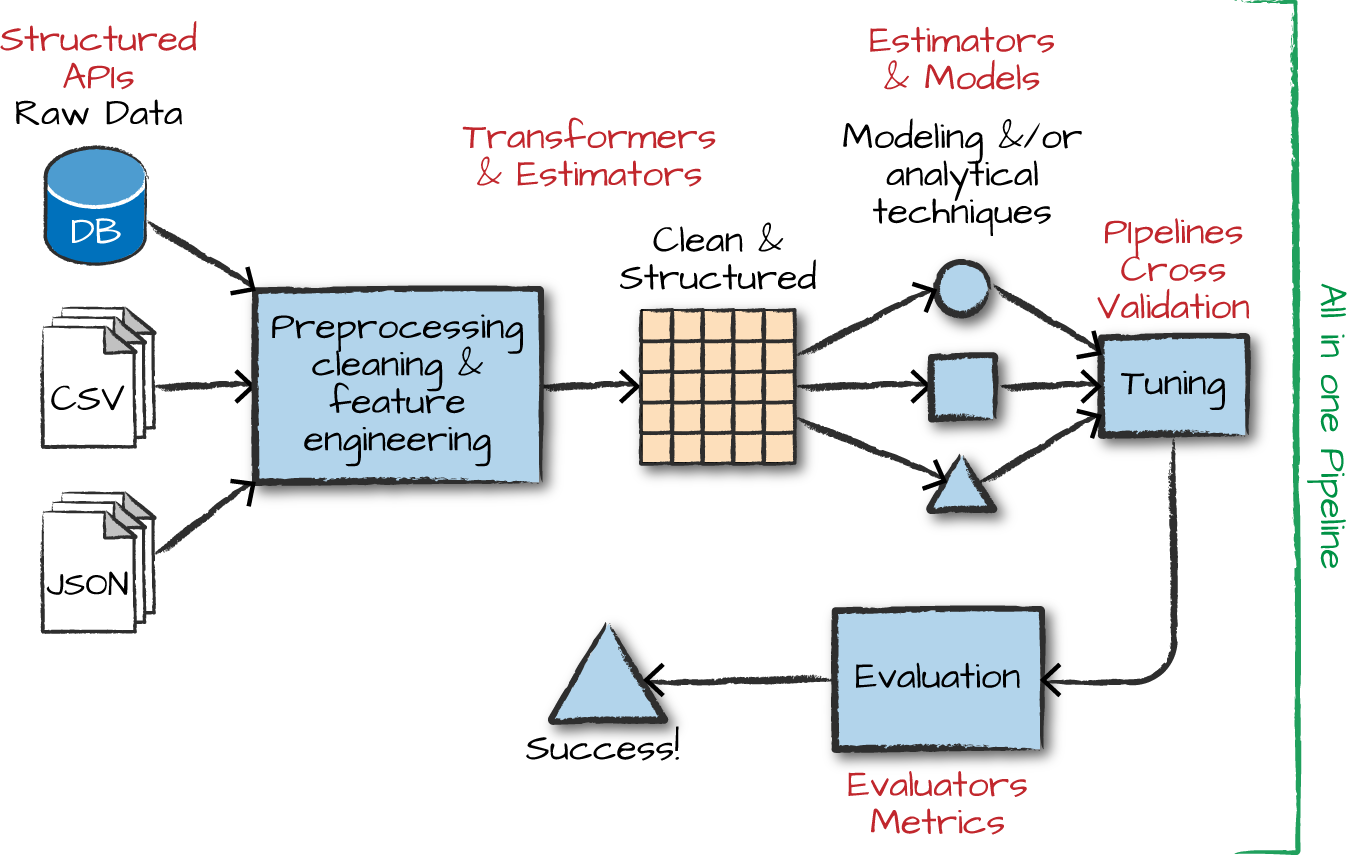

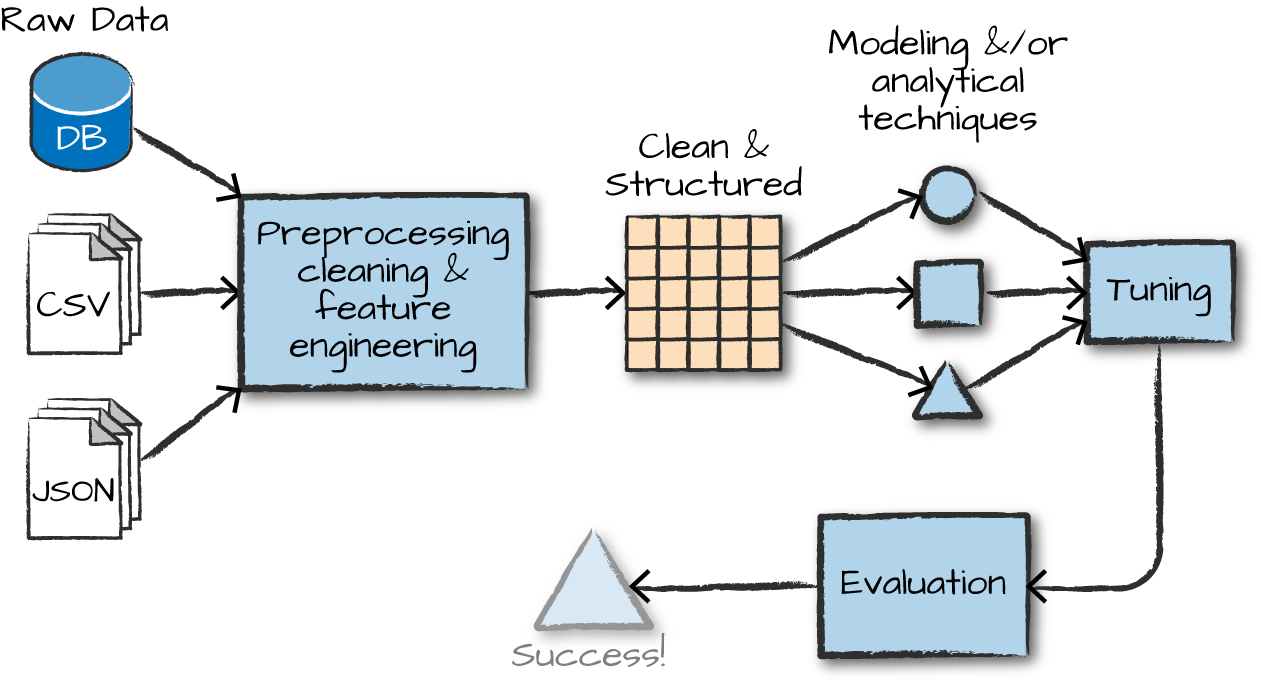

The advanced analytics/ML process

  1. Gather and collect data

  2. Clean and inspect data

  3. Perform feature engineering

  4. Split data into train/test

  5. Evaluate and compare models

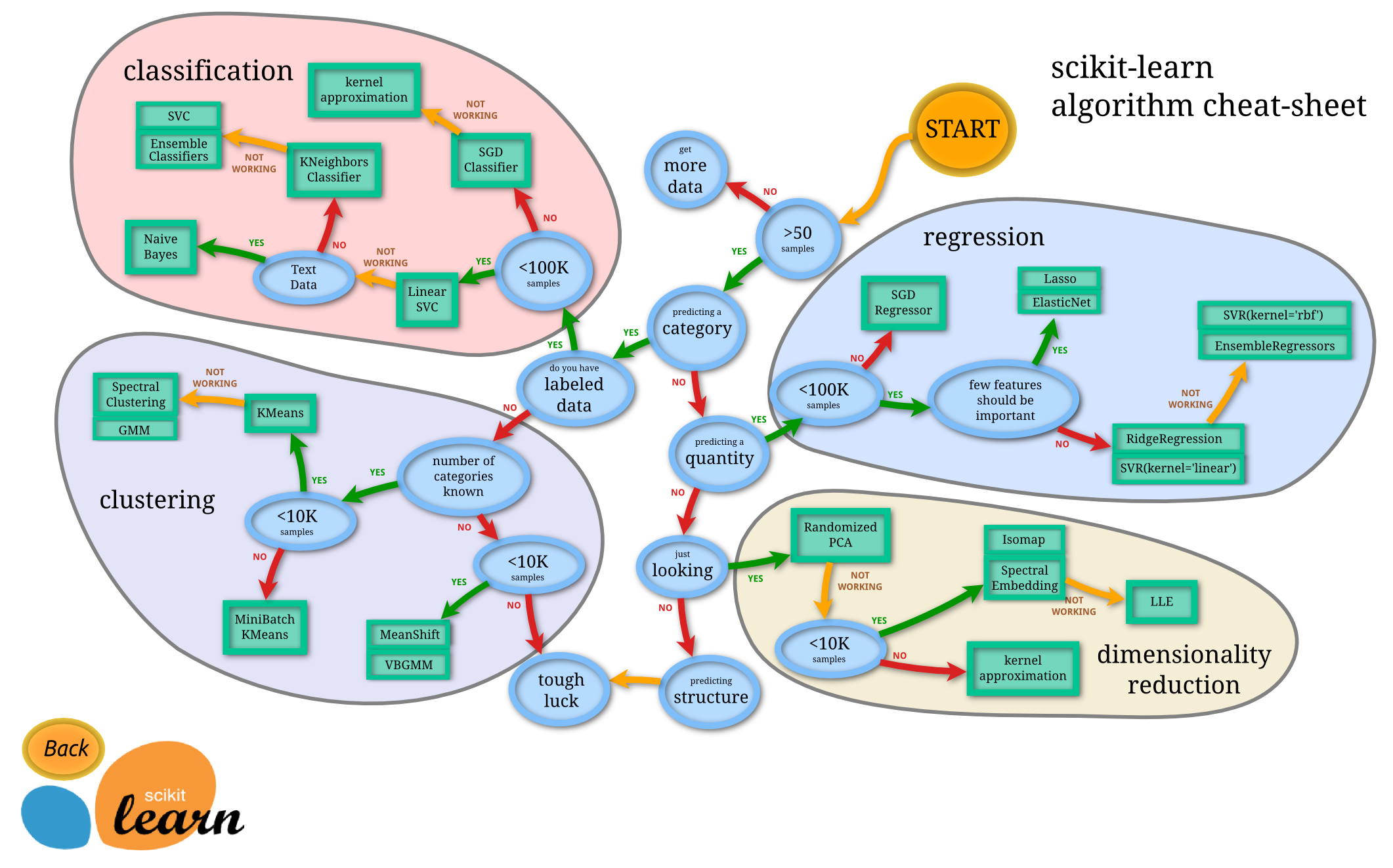

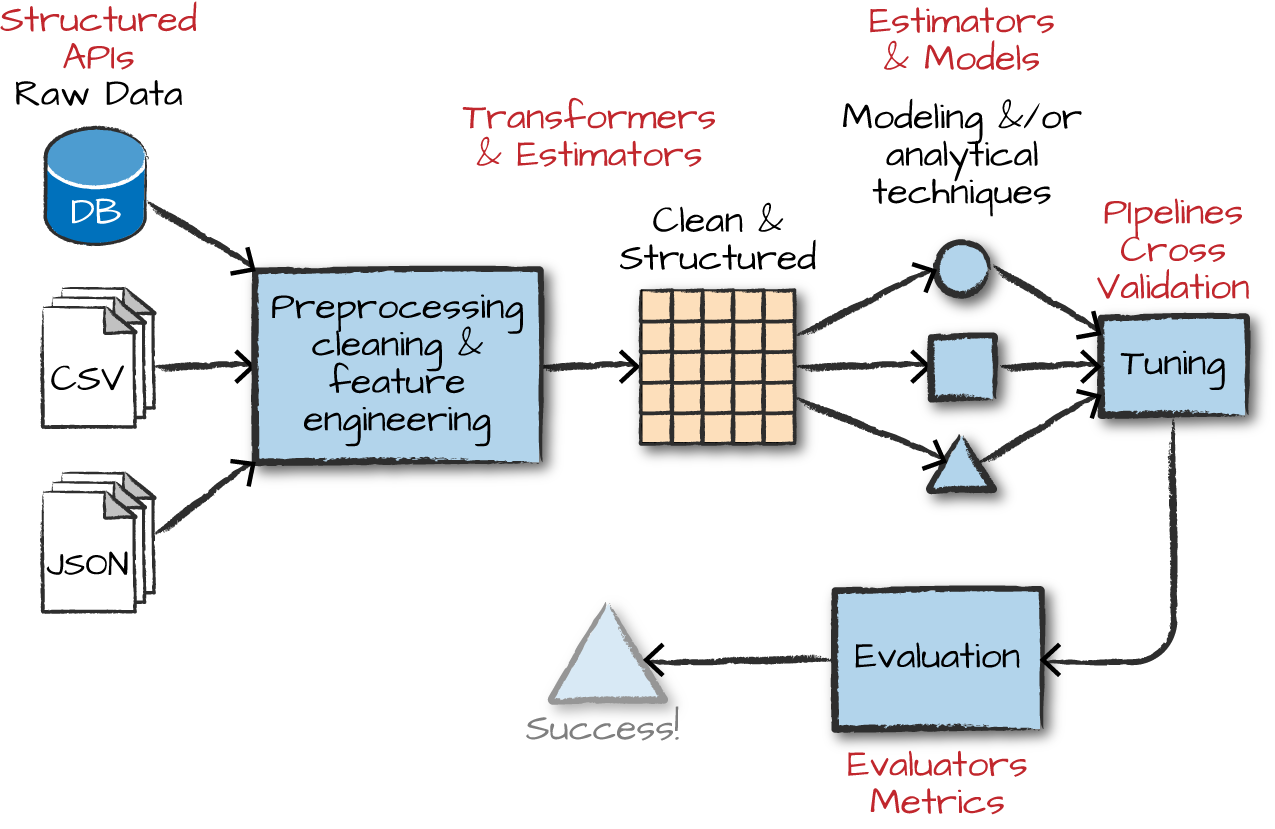

Overview of ML algorithms

Pipelines for ML workflows

What is MLlib?

MLlib capabilities

Capabilities

  • Gather and clean data
  • Perform feature engineering
  • Perform feature selection
  • Train and tune models
  • Put models in production

API is divided into two packages

org.apache.spark.ml (High level API) - Built on top of DataFrames - Allows construction of ML pipelines

org.apache.spark.mllib (Predates DataFrames) - Original API built on top of RDDs

Inspired by scikit-learn

  • DataFrame

  • Transformer

  • Estimator

  • Pipeline

  • Parameter

Transformers, Estimators, and Pipelines

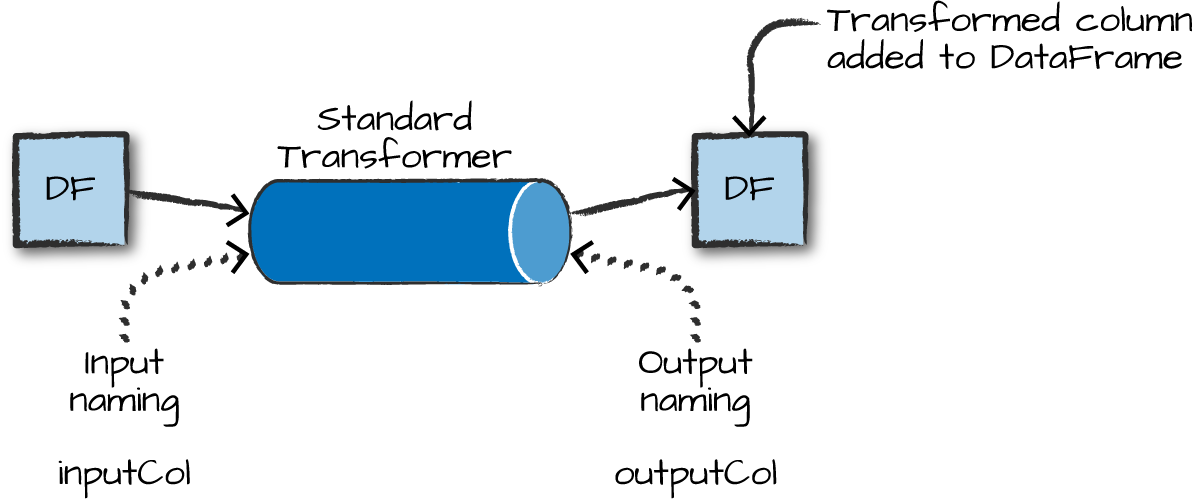

Transformers

Transformers take DataFrames as input, and return a new DataFrame as output.

Transformers do not learn any parameters from the data — they simply apply rule-based transformations to either prepare data for model training or generate predictions using a trained model.

Transformers are run using the .transform() method

Some Examples of Transformers

  • Converting categorical variables to numeric (required for MLlib)
    • StringIndexer
    • OneHotEncoder — can act on multiple columns at once
  • Data Normalization
    • Normalizer
    • StandardScaler
  • String Operations (for NLP pipelines)
    • Tokenizer
    • StopWordsRemover
    • Word2Vec
  • Dimensionality reduction
    • PCA
  • Converting continuous to discrete
    • Bucketizer
    • QuantileDiscretizer

MLlib needs a single, numeric features column as input

Each row in this column contains a vector of data points corresponding to the set of features used for prediction.

  • Use the VectorAssembler transformer to create a single vector column from a list of columns.

  • All categorical data must be numeric for machine learning.

from pyspark.ml.linalg import Vectors
from pyspark.ml.feature import VectorAssembler

dataset = spark.createDataFrame(
    [(0, 18, 1.0, Vectors.dense([0.0, 10.0, 0.5]), 1.0)],
    ["id", "hour", "mobile", "userFeatures", "clicked"])

assembler = VectorAssembler(
    inputCols=["hour", "mobile", "userFeatures"],
    outputCol="features")

output = assembler.transform(dataset)
output.select("features", "clicked").show(truncate=False)

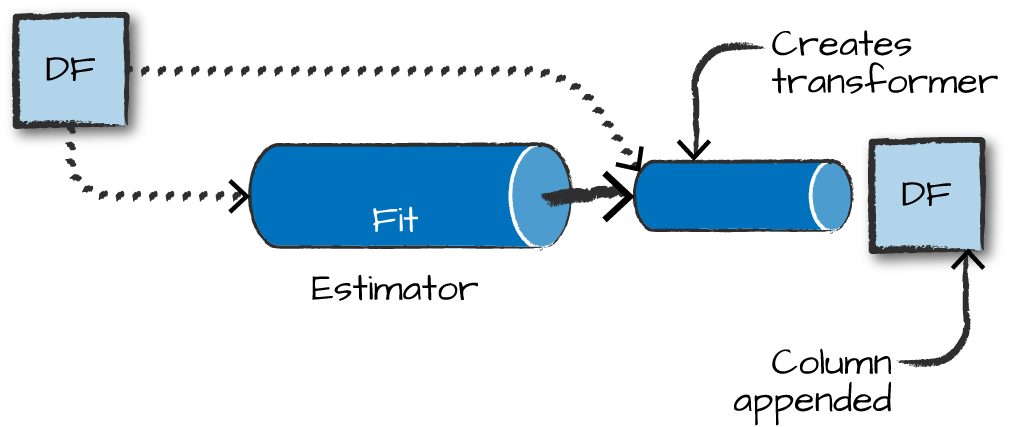

Estimators

Estimators learn (or “fit”) parameters from your DataFrame via the .fit() method, and return a model which is a Transformer.

Pipelines

Pipelines

Pipelines combine multiple steps into a single workflow:

  • Data cleaning and feature processing via transformers, using stages
  • Model definition
  • Run the pipeline to do all transformations and fit the model

The Pipeline constructor takes an array of pipeline stages.

Why Pipelines?

  1. Cleaner Code: No need to manually keep track of training and validation data at each step.

  2. Fewer Bugs: Fewer opportunities to misapply a step or forget a preprocessing step.

  3. Easier to Productionize: Pipelines help transition a model from prototype to deployed.

  4. More Options for Model Validation: Cross-validation and other techniques apply easily to Pipelines.

Feature Engineering Walk-through

Example dataset: HMP Activity Recognition

Using the HMP Dataset — sensor data for human motion prediction.

df.printSchema()

# root
# |-- x: integer (nullable = true)
# |-- y: integer (nullable = true)
# |-- z: integer (nullable = true)
# |-- class: string (nullable = false)
# |-- source: string (nullable = false)

Step 1: StringIndexer — strings to numbers

The StringIndexer is an estimator with both fit and transform methods.

from pyspark.ml.feature import StringIndexer

indexer = StringIndexer(inputCol='class', outputCol='classIndex')
indexed = indexer.fit(df).transform(df)
indexed.show(5)
# +---+---+---+-----------+--------------------+----------+
# |  x|  y|  z|      class|              source|classIndex|
# +---+---+---+-----------+--------------------+----------+
# | 29| 39| 51|Drink_glass|Accelerometer-201...|       2.0|
# ...

Step 2: OneHotEncoder — encode categories

Unlike StringIndexer, OneHotEncoder is a pure transformer with only a transform method.

from pyspark.ml.feature import OneHotEncoder

encoder = OneHotEncoder(inputCol='classIndex', outputCol='categoryVec')
encoded = encoder.transform(indexed)
encoded.show(5, False)
# +---+---+---+-----------+...+----------+--------------+
# |x  |y  |z  |class      |...|classIndex|categoryVec   |
# +---+---+---+-----------+...+----------+--------------+
# |29 |39 |51 |Drink_glass|...|       2.0|(13,[2],[1.0])|

Step 3: VectorAssembler — create features vector

from pyspark.ml.feature import VectorAssembler

vectorAssembler = VectorAssembler(inputCols=['x', 'y', 'z'], outputCol='features')
features_vectorized = vectorAssembler.transform(encoded)
features_vectorized.show(5, False)
# ...
# |features        |
# +----------------+
# |[29.0,39.0,51.0]|

Step 4: Normalizer — scale features

from pyspark.ml.feature import Normalizer

# p=1.0 uses Manhattan distance; p=2.0 (default) uses Euclidean distance
normalizer = Normalizer(inputCol='features', outputCol='features_norm', p=1.0)
normalized_data = normalizer.transform(features_vectorized)

Step 5: Build the Pipeline

The Pipeline constructor takes an array of stages in the right sequence:

from pyspark.ml import Pipeline

pipeline = Pipeline(stages=[indexer, encoder, vectorAssembler, normalizer])

# fit the pipeline to the original DataFrame
data_model = pipeline.fit(df)

# transform using the pipeline
pipelined_data = data_model.transform(df)

You now have a DataFrame optimized for SparkML!

Machine Learning Models in Spark

Available model types

Regression

  • Linear regression
  • Generalized linear model (GLM)
  • Random forest regression
  • Gradient-boosted trees

Classification

  • Logistic regression
  • Gradient-boosted tree classifier
  • Naive Bayes
  • Multilayer perceptron (neural network)

Other

  • Clustering: K-means, LDA, GMM
  • Association rule mining
  • Dimensionality reduction: PCA, SVD

Building your model — RFormula

Feature selection using easy R-like formulas:

from pyspark.ml.feature import RFormula

dataset = spark.createDataFrame(
    [(7, "US", 18, 1.0),
     (8, "CA", 12, 0.0),
     (9, "NZ", 15, 0.0)],
    ["id", "country", "hour", "clicked"])

formula = RFormula(
    formula="clicked ~ country + hour",
    featuresCol="features",
    labelCol="label")

output = formula.fit(dataset).transform(dataset)
output.select("features", "label").show()

Feature selection — ChiSqSelector

Pick categorical variables most dependent on the response variable:

from pyspark.ml.feature import ChiSqSelector
from pyspark.ml.linalg import Vectors

df = spark.createDataFrame([
    (7, Vectors.dense([0.0, 0.0, 18.0, 1.0]), 1.0),
    (8, Vectors.dense([0.0, 1.0, 12.0, 0.0]), 0.0),
    (9, Vectors.dense([1.0, 0.0, 15.0, 0.1]), 0.0)],
    ["id", "features", "clicked"])

selector = ChiSqSelector(numTopFeatures=1, featuresCol="features",
                         outputCol="selectedFeatures", labelCol="clicked")
result = selector.fit(df).transform(df)
result.show()

Tuning your model — Part 1

Hyperparameter search with ParamGridBuilder:

from pyspark.ml.evaluation import RegressionEvaluator
from pyspark.ml.regression import LinearRegression
from pyspark.ml.tuning import ParamGridBuilder, TrainValidationSplit

data = spark.read.format("libsvm").load("data/mllib/sample_linear_regression_data.txt")
train, test = data.randomSplit([0.9, 0.1], seed=12345)

lr = LinearRegression(maxIter=10)

paramGrid = ParamGridBuilder() \
    .addGrid(lr.regParam, [0.1, 0.01]) \
    .addGrid(lr.fitIntercept, [False, True]) \
    .addGrid(lr.elasticNetParam, [0.0, 0.5, 1.0]) \
    .build()

Tuning your model — Part 2

# TrainValidationSplit tries all parameter combinations
tvs = TrainValidationSplit(estimator=lr,
                           estimatorParamMaps=paramGrid,
                           evaluator=RegressionEvaluator(),
                           trainRatio=0.8)  # 80% train, 20% validation

# Run and find best parameters
model = tvs.fit(train)

# Make predictions on test data
model.transform(test) \
    .select("features", "label", "prediction") \
    .show()

Alternative: k-fold Cross Validation

CrossValidator is more rigorous than TrainValidationSplit — each parameter combination is evaluated on k separate train/test splits.

from pyspark.ml.tuning import CrossValidator

cv = CrossValidator(estimator=lr,
                    estimatorParamMaps=paramGrid,
                    evaluator=RegressionEvaluator(),
                    numFolds=5)   # 5-fold CV

model = cv.fit(train)

TrainValidationSplit

  • One train/validation split
  • Faster to run
  • Higher variance in estimates

CrossValidator

  • k splits, k evaluations per combo
  • More reliable estimate of generalization
  • ~k× more expensive

Text Analytics with Spark

Spark methods for text analytics

Built into PySpark:

  • String SQL functions: F.length(col), F.substring(str, pos, len), F.trim(col), F.upper(col), …

  • ML transformers for text:

    • Tokenizer() — split text into tokens
    • StopWordsRemover() — remove common words
    • Word2Vec() — word embeddings
    • CountVectorizer() — term frequency vectors

Tokenizer

from pyspark.ml.feature import Tokenizer

df = spark.createDataFrame([("a b c",)], ["text"])
tokenizer = Tokenizer(outputCol="words")
tokenizer.setInputCol("text")
tokenizer.transform(df).head()
# Row(text='a b c', words=['a', 'b', 'c'])

Tokenizer docs

StopWordsRemover

from pyspark.ml.feature import StopWordsRemover

df = spark.createDataFrame([(["a", "b", "c"],)], ["text"])
remover = StopWordsRemover(stopWords=["b"])
remover.setInputCol("text")
remover.setOutputCol("words")
remover.transform(df).head().words  # ['a', 'c']

# Multiple columns
df2 = spark.createDataFrame([(["a", "b", "c"], ["a", "b"])], ["text1", "text2"])
remover2 = StopWordsRemover(stopWords=["b"])
remover2.setInputCols(["text1", "text2"]).setOutputCols(["words1", "words2"])
remover2.transform(df2).show()
# +---------+------+------+------+
# |    text1| text2|words1|words2|
# +---------+------+------+------+
# |[a, b, c]|[a, b]|[a, c]|   [a]|
# +---------+------+------+------+

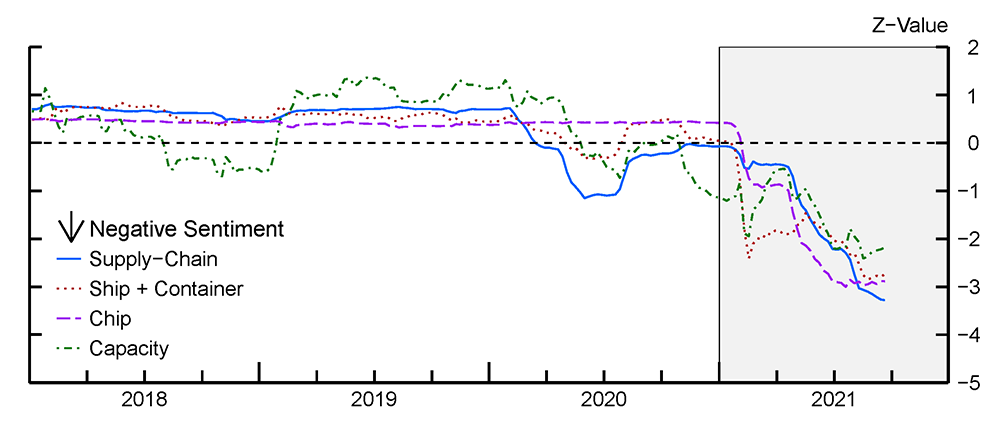

Real-world NLP Application

Data: S&P company earnings calls — tens of millions of text statements

Method: Proximity-based sentiment analysis

Tech: PySpark, Python UDFs, list comprehensions

Proximity-based Sentiment

Example: find A’s within a certain distance of a Y

# within 2 → 0
X X X X Y X X X A
# within 2 → 1
X X A X Y X X X A
# within 2 → 2
X A X A Y A X X A
# within 4 → 3
A X A X Y X X X A
  • Count the number of Y’s in the text that have an A near enough to them
  • Aggregate at scale!
  • Uses Tokenizer() and StopWordsRemover()

Prof. Anderson’s Paper

JohnSnowLabs Spark NLP

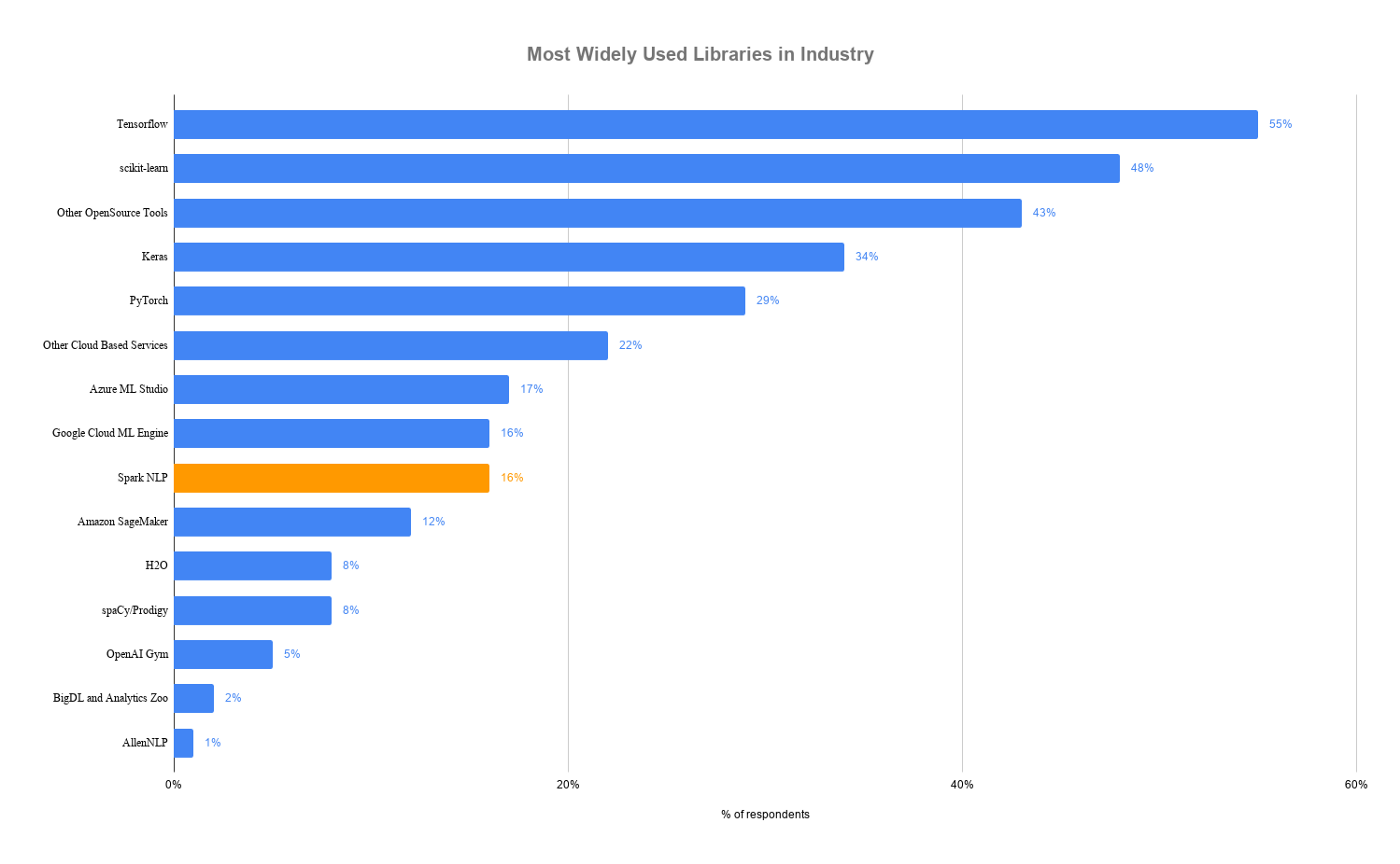

Why a dedicated NLP library?

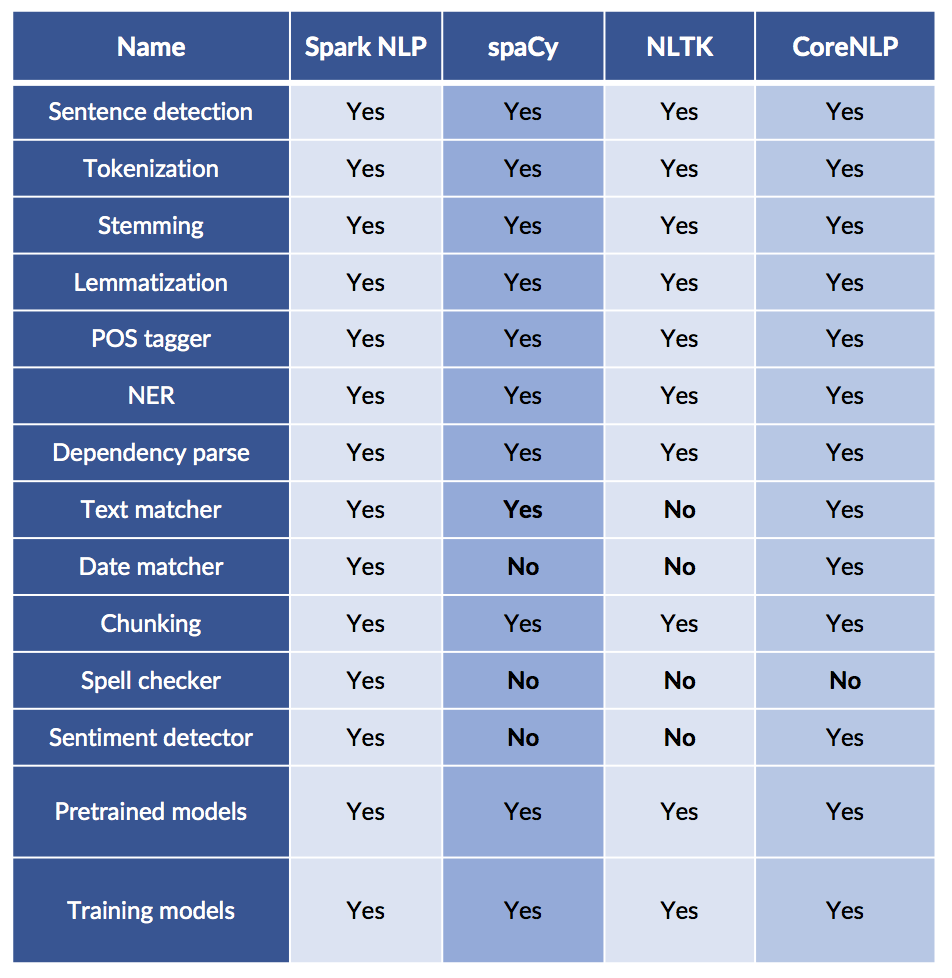

Which NLP libraries have the most features?

Comparing NLP Packages

Just because it is scalable does not mean it lacks features!

Spark NLP is faster than spaCy

Benchmark: pipeline with sentence boundary detection, tokenizer, and POS tagger on a 4-core laptop

Why is Spark NLP faster?

  • Whole-stage code generation, vectorized in-memory columnar data
  • No copying of text in memory
  • Extensive profiling, config, and code optimization of Spark and TensorFlow
  • Optimized for both training and inference

And it scales across a cluster!

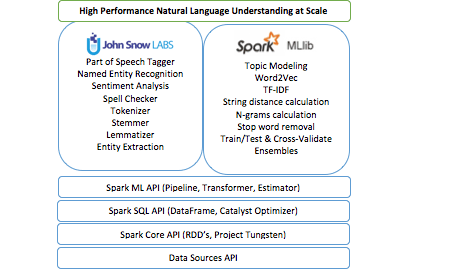

Spark NLP Capabilities

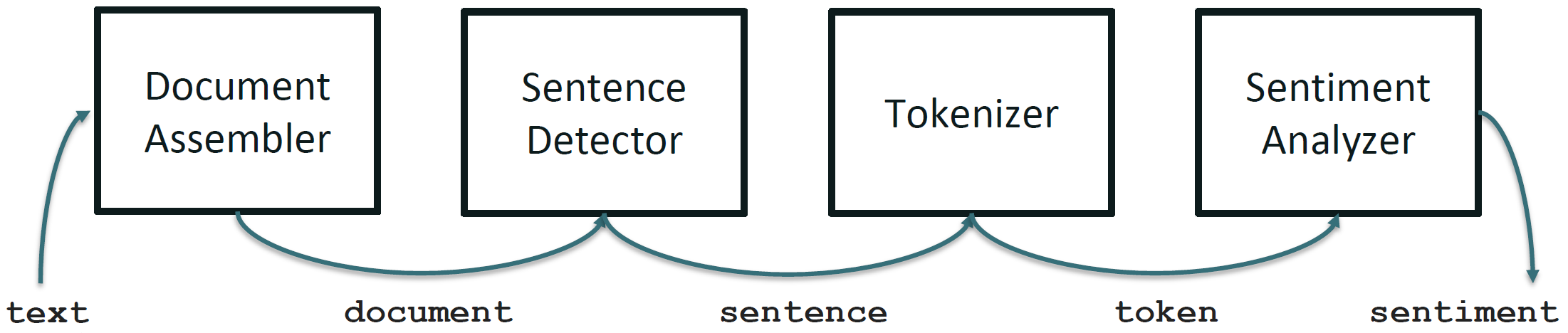

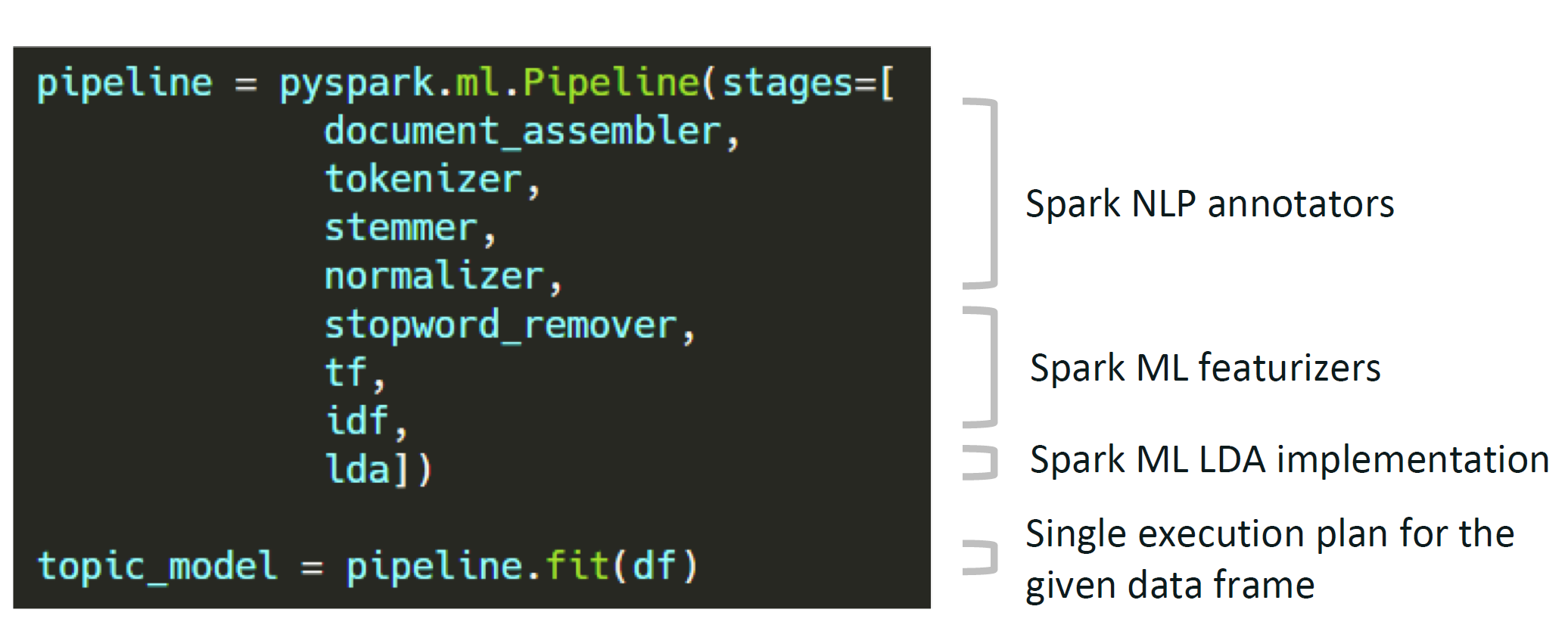

Reusing the Spark ML Pipeline

  • Unified NLP & ML pipelines
  • End-to-end execution planning
  • Serializable
  • Distributable

Reusing NLP Functionality

  • TF-IDF calculation
  • String distance calculation
  • Stop word removal
  • Topic modeling
  • Distributed ML algorithms

Spark NLP Terminology

Annotators

  • Like the ML tools we used in Spark
  • Always need input and output columns
  • Two flavors:
    • Approach — like ML Estimators that need a fit() method to make an Annotator Model/Transformer
    • Model — like ML Transformers; uses transform() method only

Annotator Models

  • Pretrained public versions available through .pretrained() method

Q: Do transformer ML methods ever remove columns in a Spark DataFrame?

No!! They only add columns.

Spark NLP Sentiment Example

Spark NLP Pipeline Example

Spark NLP Pipeline Types

Spark Pipeline

  • Efficiently run on a whole Spark DataFrame
  • Distributable on a cluster
  • Uses Spark tasks, optimizations, and execution planning
  • Used by PretrainedPipeline.transform()

Light Pipeline

  • Efficiently run on a single sentence
  • Faster than a Spark pipeline for up to 50,000 local documents
  • Easiest way to publish a pipeline as an API
  • Used by PretrainedPipeline.annotate()

Recursive Pipeline

  • Gives annotators access to other annotators in the same pipeline
  • Required when training your own models

Spark NLP Pipeline Code Example

from pyspark.ml import Pipeline
from sparknlp.base import *
from sparknlp.annotator import *

document_assembler = DocumentAssembler() \
    .setInputCol("text") \
    .setOutputCol("document")

sentenceDetector = SentenceDetector() \
    .setInputCols(["document"]) \
    .setOutputCol("sentences")

tokenizer = Tokenizer() \
    .setInputCols(["sentences"]) \
    .setOutputCol("token")

normalizer = Normalizer() \
    .setInputCols(["token"]) \
    .setOutputCol("normal")

word_embeddings = WordEmbeddingsModel.pretrained() \
    .setInputCols(["document", "normal"]) \
    .setOutputCol("embeddings")
nlpPipeline = Pipeline(stages=[
    document_assembler,
    sentenceDetector,
    tokenizer,
    normalizer,
    word_embeddings,
])

pipelineModel = nlpPipeline.fit(df)

DocumentAssembler — entry point for Spark NLP

import sparknlp
from sparknlp.base import DocumentAssembler

data = spark.createDataFrame([
    ["Spark NLP is an open-source text processing library."]
]).toDF("text")

documentAssembler = DocumentAssembler() \
    .setInputCol("text") \
    .setOutputCol("document")

result = documentAssembler.transform(data)
result.select("document").show(truncate=False)
# +----------------------------------------------------------------------------------------------+
# |document                                                                                      |
# +----------------------------------------------------------------------------------------------+
# |[[document, 0, 51, Spark NLP is an open-source text processing library., [sentence -> 0], []]]|
# +----------------------------------------------------------------------------------------------+

Using HuggingFace Models with Spark NLP

Spark NLP integrates with HuggingFace Transformers models:

from transformers import TFDistilBertForSequenceClassification, DistilBertTokenizer
from sparknlp.annotator import DistilBertForSequenceClassification

MODEL_NAME = 'distilbert-base-uncased-finetuned-sst-2-english'

# Save tokenizer and model locally
tokenizer = DistilBertTokenizer.from_pretrained(MODEL_NAME)
tokenizer.save_pretrained(f'./{MODEL_NAME}_tokenizer/')

model = TFDistilBertForSequenceClassification.from_pretrained(MODEL_NAME)
model.save_pretrained(f'./{MODEL_NAME}', saved_model=True)

# Load into Spark NLP
sequenceClassifier = DistilBertForSequenceClassification \
    .loadSavedModel(f'{MODEL_NAME}/saved_model/1', spark) \
    .setInputCols(["document", "token"]) \
    .setOutputCol("class") \
    .setCaseSensitive(True)

Spark NLP + HuggingFace discussion

Readings

Required:

Encouraged:
